Virtual fly locomotion controllers

At a glance

Final project for the EPFL course “Controlling behavior in animals and robots” (Prof. P. Ramdya), completed in Spring 2023 with Alaa Aboud and Flore Munier-Jolain.

We developed controllers for virtual fly locomotion using NeuroMechFly, a biomechanical model of Drosophila melanogaster running in the MuJoCo physics engine (Lobato-Rios et al., Nature Methods, 2022). The project sits at the intersection of neuroengineering and robotics: using realistic simulation to deconstruct locomotion, test control hypotheses, and study what makes behavior robust across environments.

Goal

Implement and analyze three distinct locomotion controllers for a simulated fly:

Rule-based (decentralized) controller inspired by Cruse-style coordination rules.
CPG-based controller using coupled oscillators (one per leg), extended with sensory feedback.
Hybrid controller that uses reinforcement learning (PPO) to optimize a reduced action space, combining the strengths of hand-engineered structure and learning-based adaptation.

All controllers were evaluated on three terrains:

Flat terrain (baseline)
Blocks terrain (rough, uneven heights; challenges stability)
Gapped terrain (deep narrow gaps; challenges leg recovery)

Locomotion comparison on blocks terrain: rule-based controller with Cruse-style coordination (left), CPG-based controller with coupled oscillators (center), and hybrid RL-optimized controller combining structured patterns with learned adaptation (right).

Approach overview

Biomechanical model and actuation choices

NeuroMechFly includes a detailed morphology (segments + joints). For locomotion we focused on the 7 DoFs per leg relevant to walking, and used recorded stepping data to define stance and swing reference trajectories.

Controller 1 — Rule-based (decentralized)

Rule-based controller with Cruse-Style coordination on gapped terrain.

Core idea

A decentralized controller where each leg’s stepping decision emerges from a weighted sum of simple coordination rules, reflecting how local sensory-motor circuits can coordinate gait without centralized planning.

We implemented Cruse-inspired rules:

Rule 1: suppress lift-off (inhibitory)
Rule 2: facilitate early protraction (excitatory)
Rule 3: enforce late protraction (excitatory)
Rule 5: distribute propulsive force (balance / load sharing)

Plus a new rule to help escape when a leg is trapped in a gap (triggered when contact force stays near zero for a long window).

What made this non-trivial

Extracting swing/stance from real data was not always reliable due to noisy touch forces. We used z-position thresholds where force traces were ambiguous.
The whole behavior depended strongly on rule weights, and manual tuning is inherently approximate.

Outcome (high level)

Flat: forward motion is possible but gait is irregular and not well balanced between stance/swing phases.
Blocks: stability is mostly preserved (force distributions stay near zero mean), but progress is minimal.
Gapped: still prone to getting stuck, especially when multiple legs are trapped; the additional rule helps only in limited cases.

Takeaway: rules are a good baseline for coordination, but robustness across terrains likely requires either richer rules (spatial foot placement, recovery behaviors) or automatic tuning.

Controller 2 — CPG-based (coupled oscillators)

CPG-based controller with coupled oscillators on gapped terrain.

Core idea

We implemented a CPG network with six oscillators (one per leg). The oscillators evolve through standard coupled-oscillator dynamics (phase + amplitude), and we map oscillator outputs to stepping trajectories.

Closing the loop: force feedback

Because standard CPGs are open-loop, we introduced force feedback to handle rough terrain:

Frequency scaling by contact forces
Slow down the leg carrying the most load; speed up the leg carrying the least; interpolate for the rest.
Freezing mechanism (thresholded force)
If a leg’s end-effector force exceeds a threshold, freeze its oscillator state temporarily to prevent tipping.
Force term inside the phase dynamics
Modify the oscillator phase derivative with a term based on force variation to automatically slow oscillations during destabilizing contacts.

Gait design: tripod vs caterpillar

We evaluated multiple gaits and focused on:

Tripod gait: fast and classic compromise between speed and stability.
Caterpillar gait: wave-like pattern with four legs on the ground most of the time, which proved more robust on rough and gapped terrain.

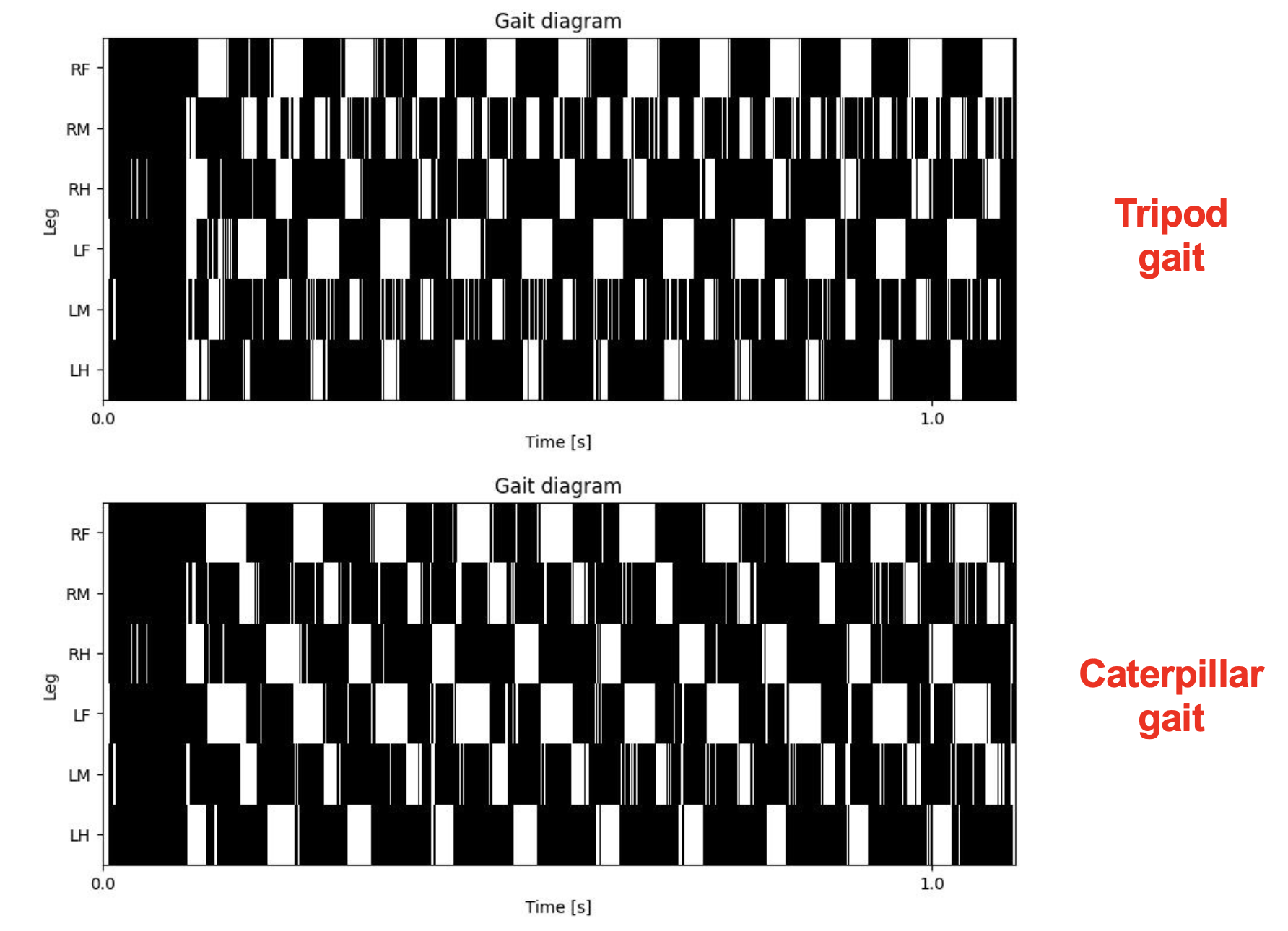

Gait diagrams for the Tripod gait (up) and for the Caterpillar gait (down).

Outcome (high level)

Flat: CPG is very effective; caterpillar gait achieved fast and stable forward motion (and in our tests outperformed tripod on distance).
Blocks / Gapped: performance drops substantially without feedback; with force feedback the fly can traverse, but robustness is not perfect (occasional tipping and failures when multiple legs are trapped).

Takeaway: CPGs are excellent for rhythmic locomotion, but realistic terrains strongly benefit from sensory feedback and/or additional high-level strategies.

Controller 3 — Hybrid RL (PPO) with structured action space

Hybrid RL-optimized controller combining structured patterns with learned adaptation on gapped terrain.

Motivation: the capacity problem

A naïve RL policy trying to output 42 continuous joint angles struggled: the action space was too high-dimensional for a simple policy to learn robustly within the project scope.

Key design: match RL capacity to the task

We constrained RL to a higher-level decision:

Observation space centered on leg contact forces (and, for blocks, also pitch and roll).
Action predicts which leg should step, rather than predicting all joint angles directly.
Joint trajectories still come from recorded stepping data (structured low-level actuation), while RL learns the coordination policy.

Outcome (high level)

This hybrid approach was the most consistently effective across terrains:

Flat: stable locomotion, strong forward progress; multi-objective rewards (speed + stability) traded off speed slightly without clear benefit on flat terrain.
Gapped: strong performance; the policy learns reactive behaviors (e.g., thrust/jump-like recovery) that help escape gaps.
Blocks: initially tipped over; adding pitch/roll to the observation improved robustness and enabled consistent traversal.

Takeaway: hand-engineered structure (low-level stepping primitives) + learning (high-level coordination) was a strong and practical compromise. It was robust without requiring an unrealistic action space.

Results summary (qualitative)

Rule-based: interpretable, biologically-inspired coordination; limited robustness on complex terrains without better tuning and recovery logic.
CPG-based: strong rhythmic locomotion; best on flat terrain; sensory feedback and gait choice (caterpillar) matter a lot on rough terrain.
Hybrid RL: best overall robustness; learns terrain-adaptive strategies while keeping the control space compact and learnable.

Acknowledgements

Course: EPFL — Controlling behavior in animals and robots (Prof. P. Ramdya)
Team: Alaa Aboud, Flore Munier-Jolain, Luca Zunino
