Poker table cards and chips recognition

At a glance

Final project for the EPFL course “Image Analysis and Pattern Recognition” (Prof. J.-P. Thiran), completed in Spring 2022 with Roberto Minini and Roberto Ceraolo.

We implemented an end-to-end image understanding task on poker-table scenes. Starting from a single RGB image of a table, our system automatically identifies:

• The five table cards,
• The two cards of each player (or detects face-down / absent players),
• The number of chips per color in the pot.

Approach overview

We implemented a robust classical computer vision pipeline that turns a complex image into structured predictions through staged geometry + detection + classification:

1. Detect table corners in the original image
2. Warp the image to obtain a frontal view of the table
3. Split the warped table into semantic regions (players / table cards / chips)
4. Detect + classify chips (circle detection + color-based k-NN)
5. Recognize cards (template matching with rotation search)
6. Return predictions in the required dictionary format

A key design choice was to increase robustness by combining redundant preprocessing hypotheses (multiple thresholding methods + voting) with simple but reliable classifiers (k-NN on color features; template matching for symbols).

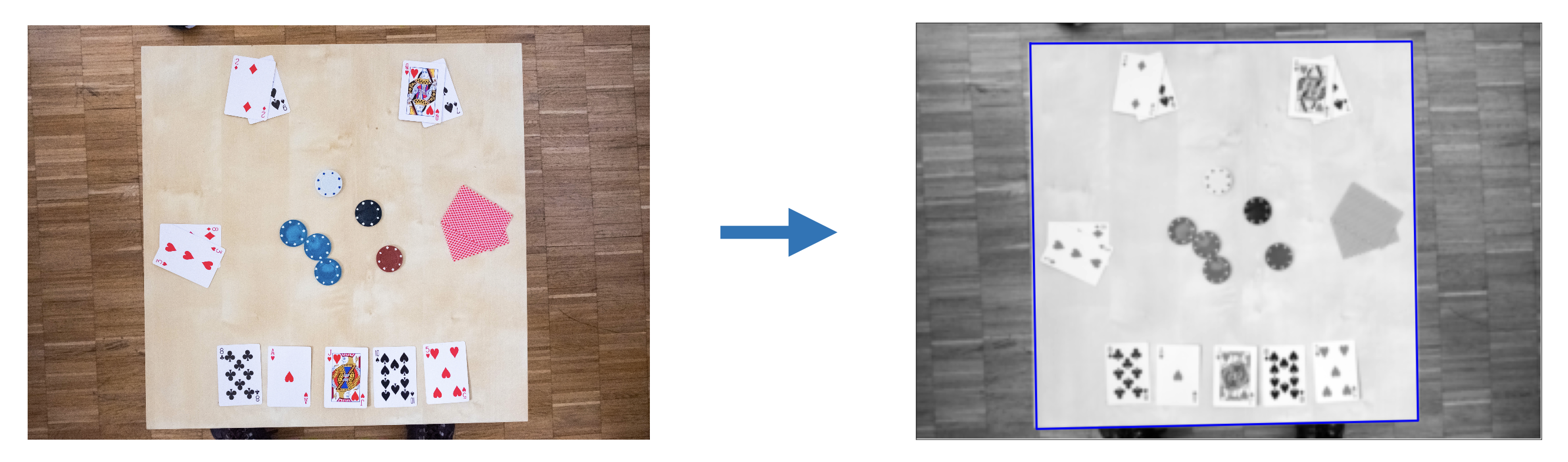

1) Table extraction (corner detection)

Core idea

Accurate recognition becomes much easier once the table is isolated and rectified. We therefore detect the table as the dominant object and estimate its four corners.

What we did

• Convert the image to LAB, using the L channel as grayscale.
• Downscale the image to a tractable resolution (e.g., 200×300) for faster processing.
• Compute five different binary masks using multiple thresholding methods (Triangle, Otsu, Mean, Li, Isodata) to handle lighting variability.
• Use connected-component labeling and select the most frequent non-background label (table assumed largest object).
• Clean masks via erosion + area opening, then compute a convex hull for each candidate table mask.
• Estimate corners using Harris corner detection.
  • If Harris fails (not exactly 4 corners), fall back to a minimum bounding rectangle on the convex hull.
• Combine the 5 corner candidates using a majority vote for robustness.

Takeaway: redundancy + voting makes the table detection reliable even when some thresholding methods fail.

2) Warping and region splitting

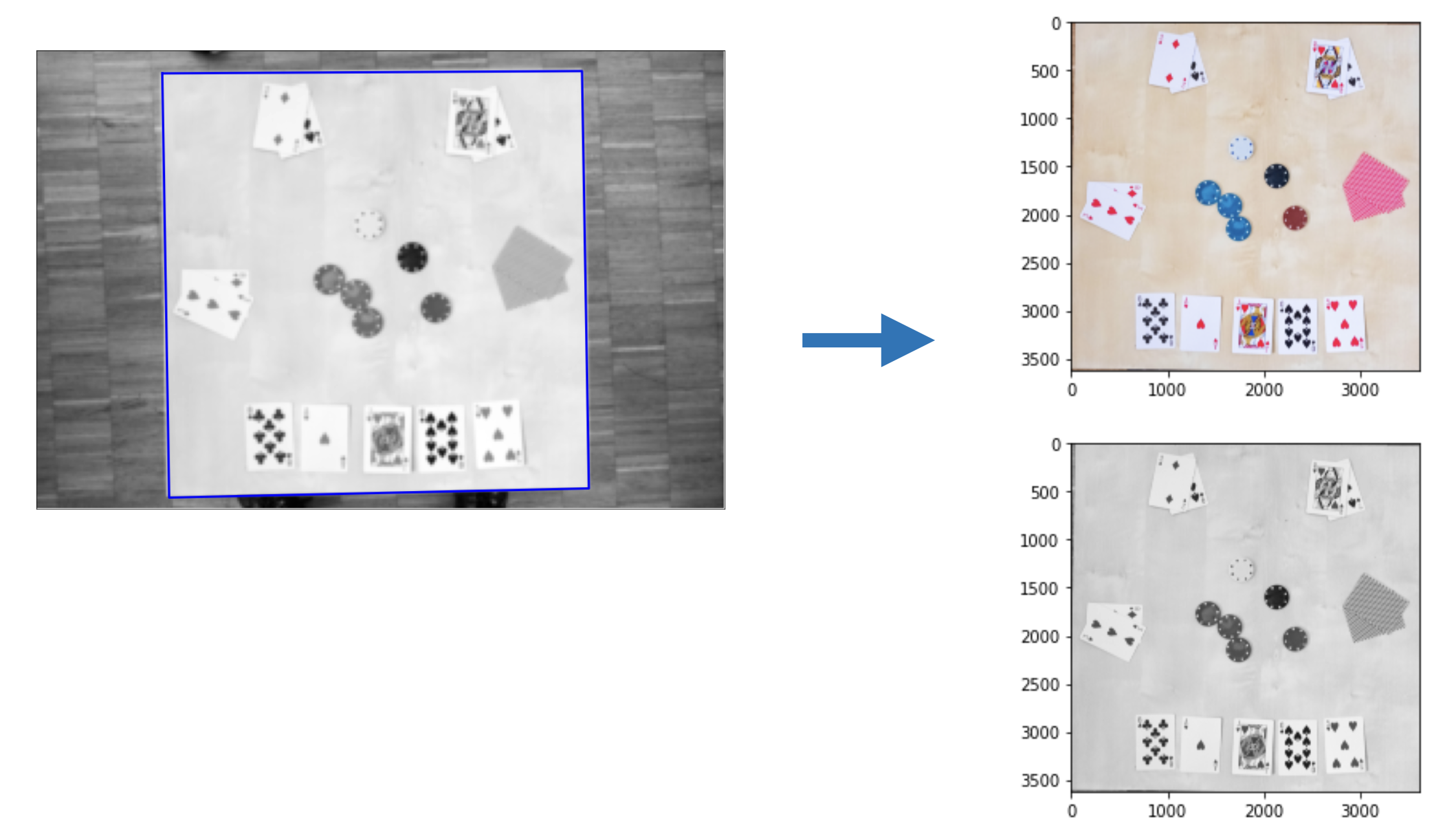

Warping

Given detected table corners and a canonical destination rectangle, we estimate a projective transform and warp the image to obtain a frontal table view (both grayscale and color versions). We then crop to keep only the table.

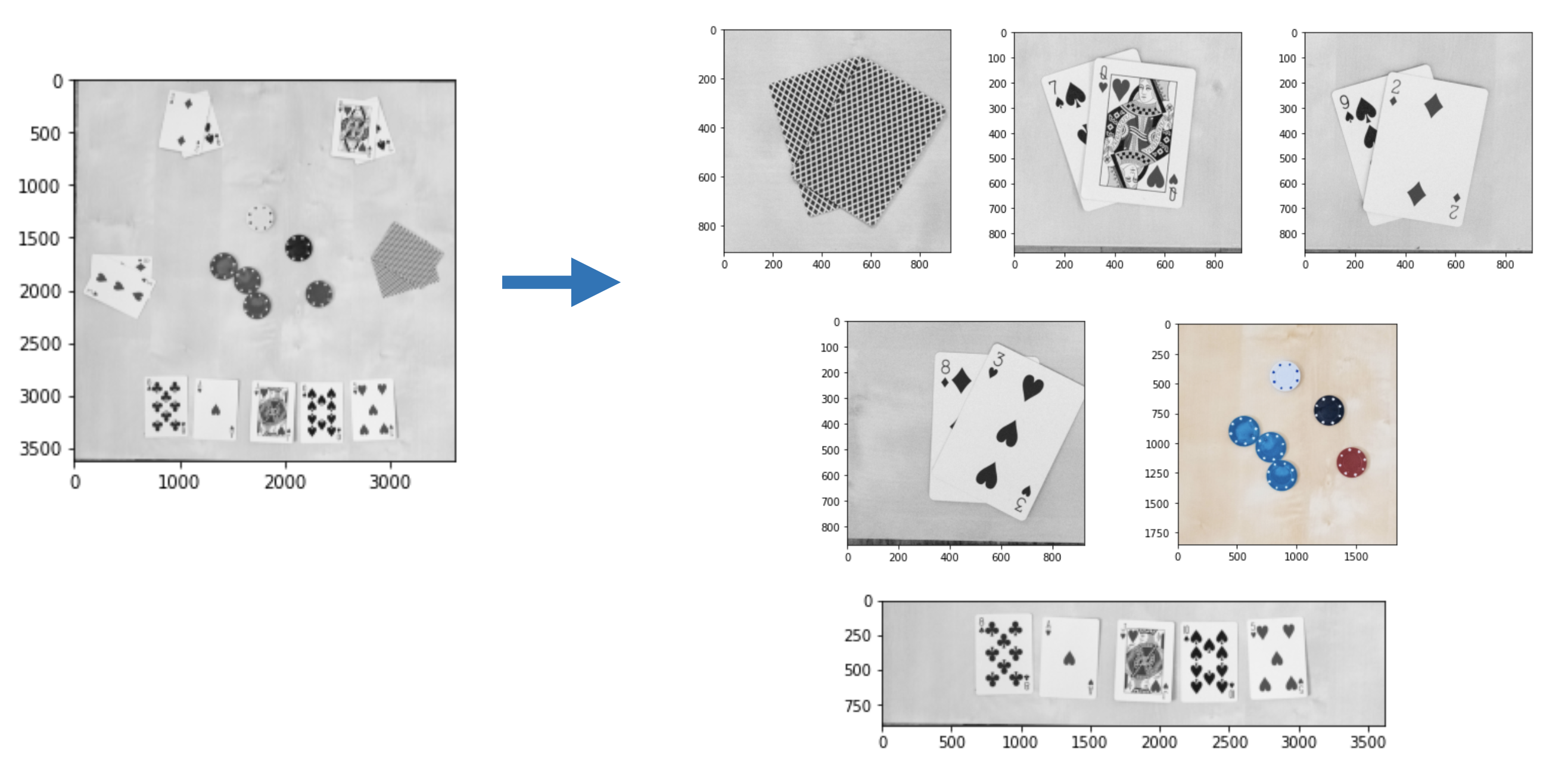

Splitting into sub-regions

Because the warped table has consistent geometry, we use a hard-coded split (proportions of width/height) to extract:

• 4 player regions (P1..P4)
• The table cards region (T)
• The chips region (C)

We then split the table-cards region into five individual card crops (T1..T5), again using fixed proportional boundaries.

Takeaway: warping turns a hard detection problem into a stable “structured crop” problem.

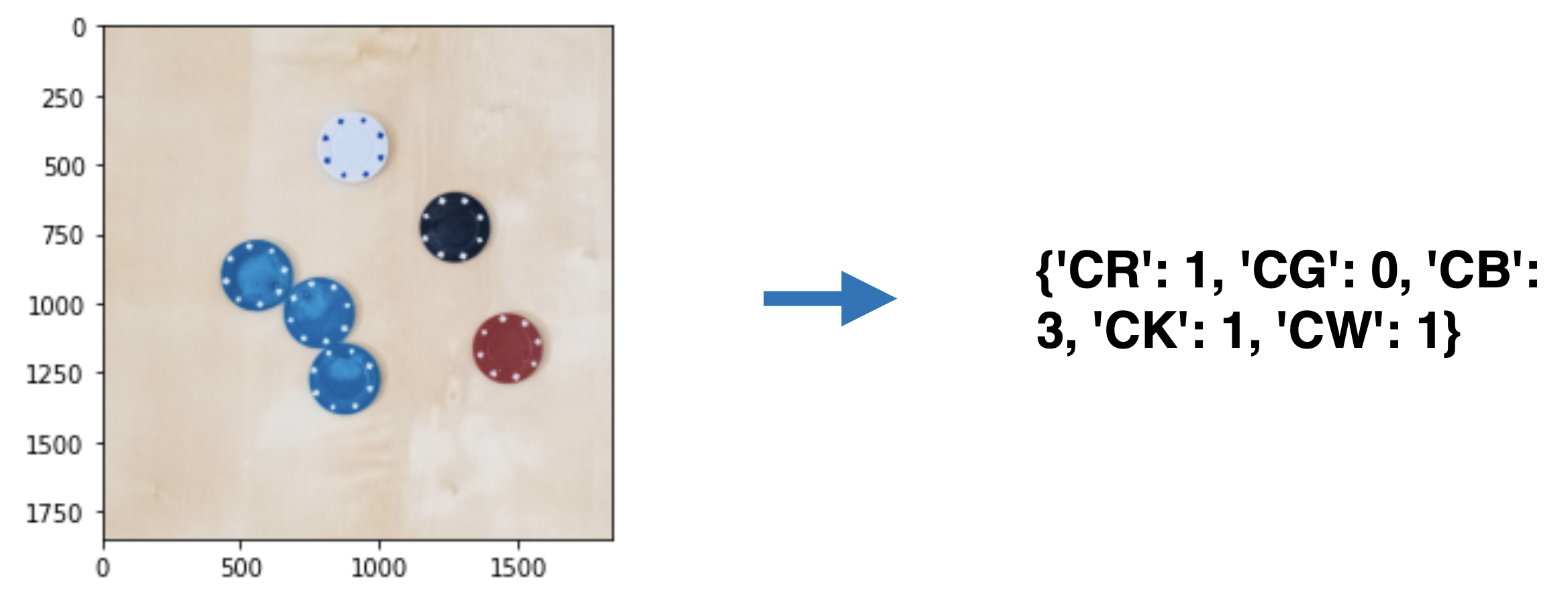

3) Chips detection and classification

Detection

Chips are detected using the Hough circle transform, tuned to be sensitive to partially occluded circles (accepting some false positives that we later filter).

We handle chips in two passes:

1. Detect black/red/green/blue chips using the L channel thresholding strategy to separate colored chips from the table.
2. Detect white chips separately (they blend with the table), using a different preprocessing path (LAB channel choice + masking) and another Hough pass.

Classification (k-NN)

For each detected circle:

• Build a mask for the chip interior and compute average color features.
• Use a k-NN classifier (k = 3, distance-weighted) trained on manually labeled chip samples extracted from the training images.

Features (4D vector):

1. Mean R inside chip
2. Mean G inside chip
3. Mean B inside chip
4. Mean L over the whole chips sub-image (captures global lighting)

We also included “negative” examples (white chips / table patches) to reject false detections.

Takeaway: circle detection + simple color features + k-NN is surprisingly strong when paired with careful preprocessing and a lighting feature.

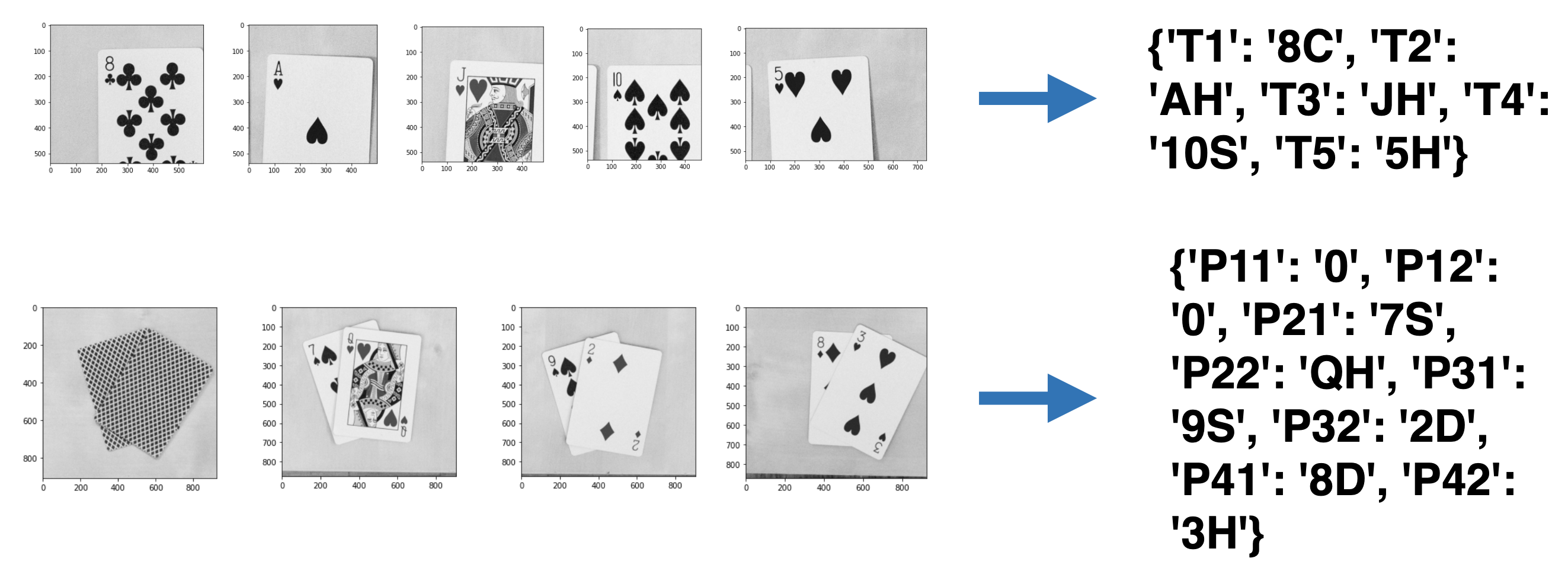

4) Card recognition (table + players)

Single-card classification (table cards)

We implemented a classify_card routine based on template matching:

• Templates are extracted from provided setup images (spades_suits, kings, etc.) for:
  • Ranks: A, 2–10, J, Q, K (plus a back-of-card template for face-down cases)
  • Suits: D, H, S, C
• Matching metric: cv.TM_CCOEFF_NORMED
• For robustness to small rotations, we rotate each single-card crop from −6° to +6° (step 2°) and keep the best-confidence result.

Double-card classification (player hands)

Player crops contain two cards with larger rotations and mutual interference. We therefore:

• Sweep rotations from −35° to +35° (step 4°).
• Use classify_double_card twice per rotation:
  1. Classify the best card symbol,
  2. Mask the matched symbol region and classify again to get the second card.
• Add sanity checks:
  • Swap rank/suit if the two cards get mixed,
  • Return results ordered as leftmost card first, matching the expected output format,
  • Return 0 for players not playing / face-down cards.

Takeaway: template matching is brittle in general, but becomes workable here thanks to controlled crops (warping) and explicit rotation search.

Results (high level)

On the provided training set, the pipeline achieved strong performance overall, with most errors coming from difficult lighting conditions, partial occlusions, or challenging suit/rank visibility:

• Chips: high accuracy (most images in the strong-score range; robust counting even with partial occlusions)
• Card ranks: very high accuracy (template matching is reliable for numbers/letters)
• Card suits: slightly harder than ranks (smaller symbols + color/lighting variability), but still strong on average

Acknowledgements

Course: EPFL — Image Analysis and Pattern Recognition (Prof. J.-P. Thiran)
Team: Roberto Ceraolo, Roberto Minini, Luca Zunino
